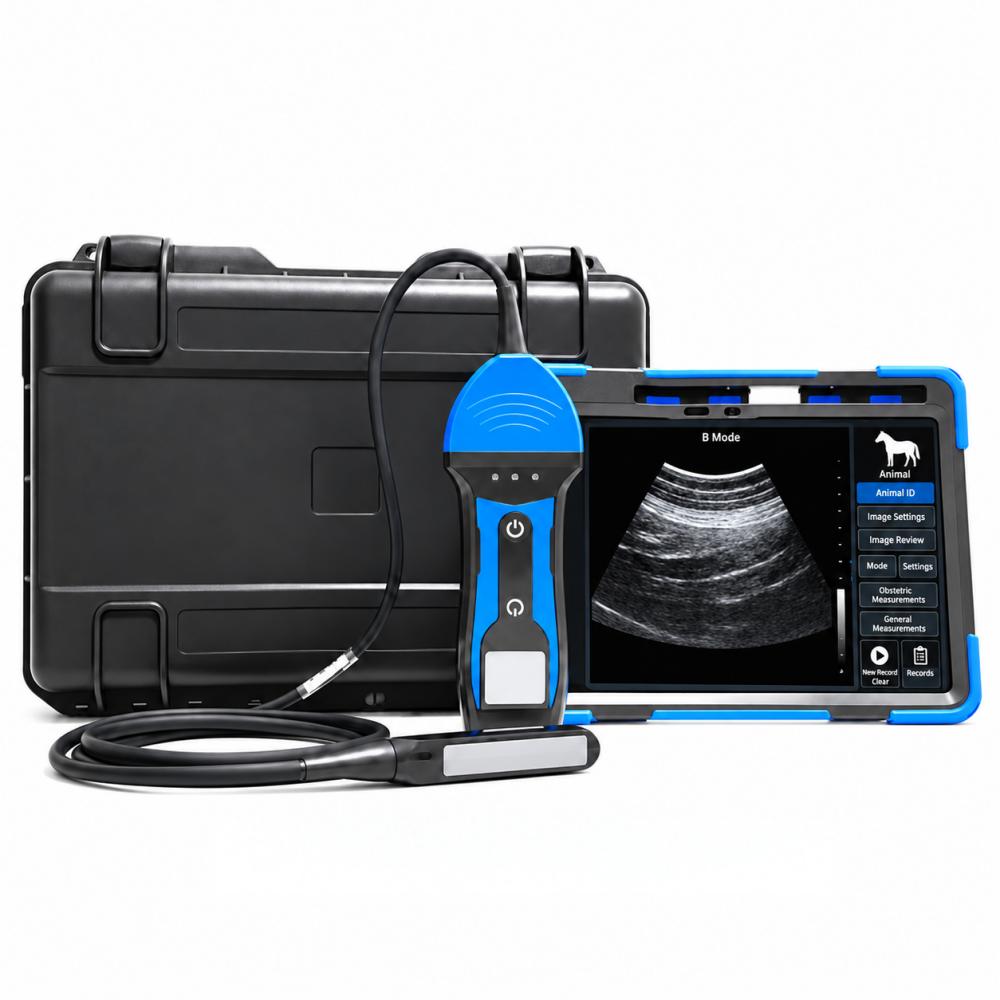

Wireless Veterinary Ultrasound with Color Doppler for Cattle and Horses

For reproductive examinations

The supplied rectal linear probe is intended for transrectal examinations in cattle, horses and donkeys, including pregnancy assessment and observation of the ovaries and uterus. Select equipment by animal and examination route.

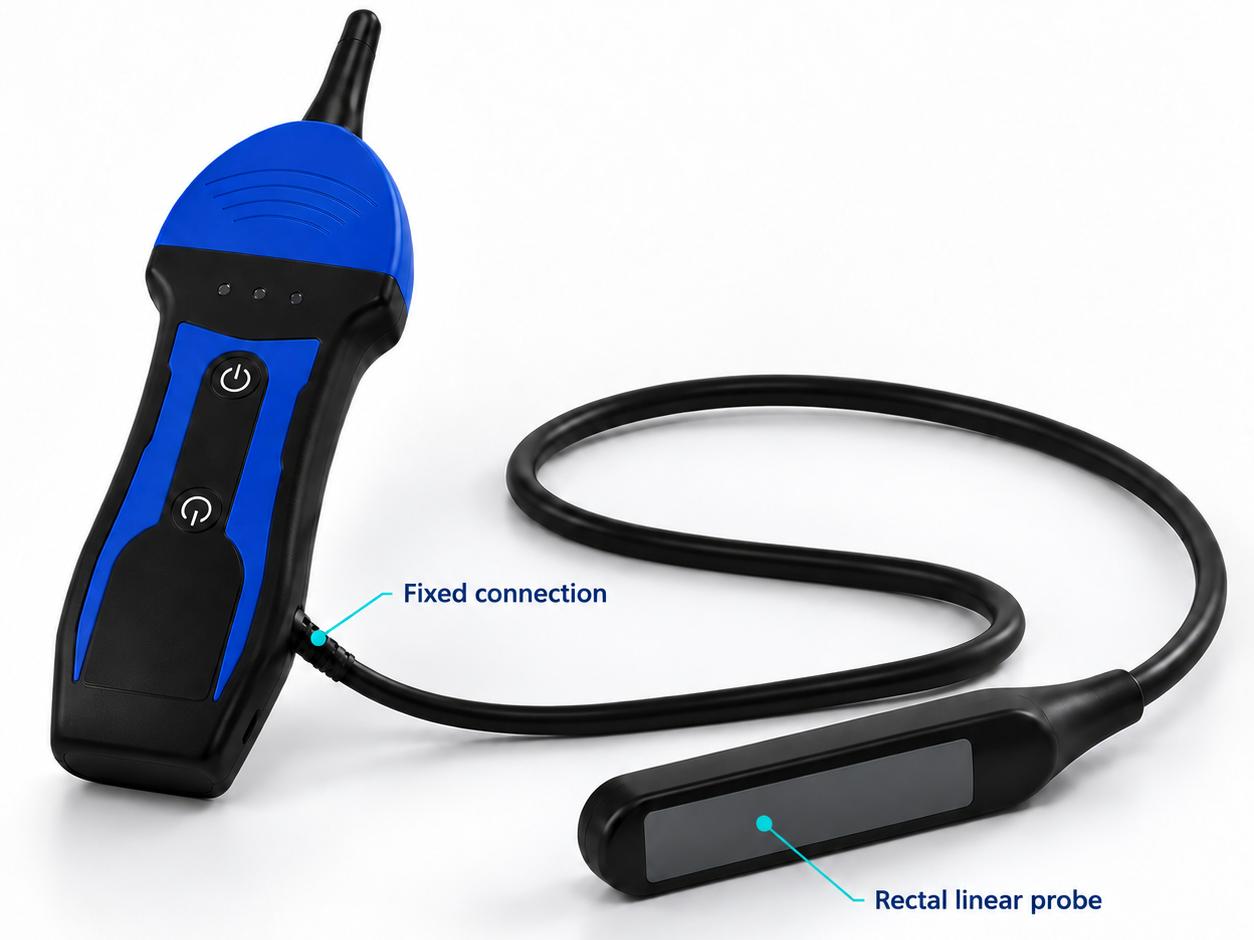

A fixed-probe system

The probe is permanently connected to this scanner. It is not an interchangeable-probe platform, and selecting another animal in the app does not change the physical probe or its suitable applications.

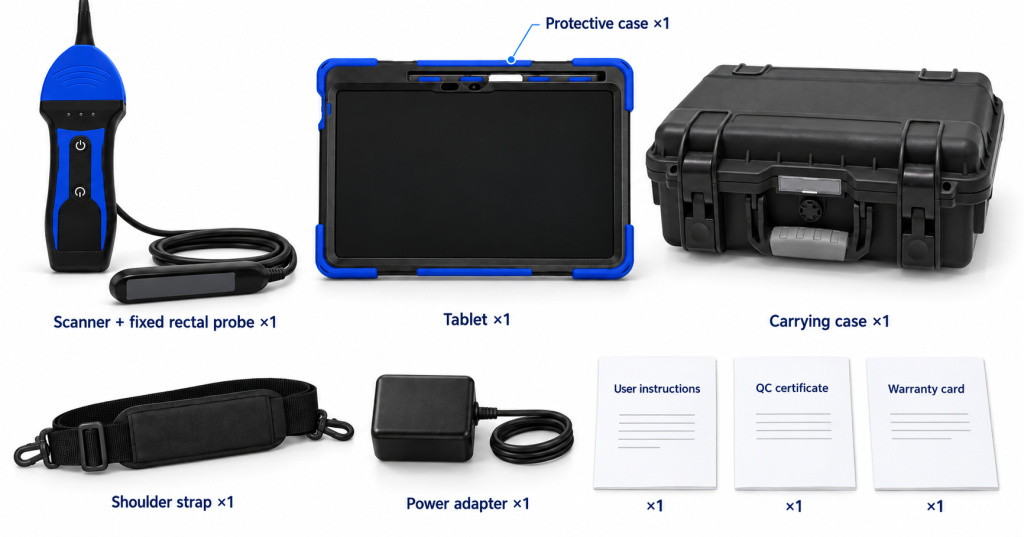

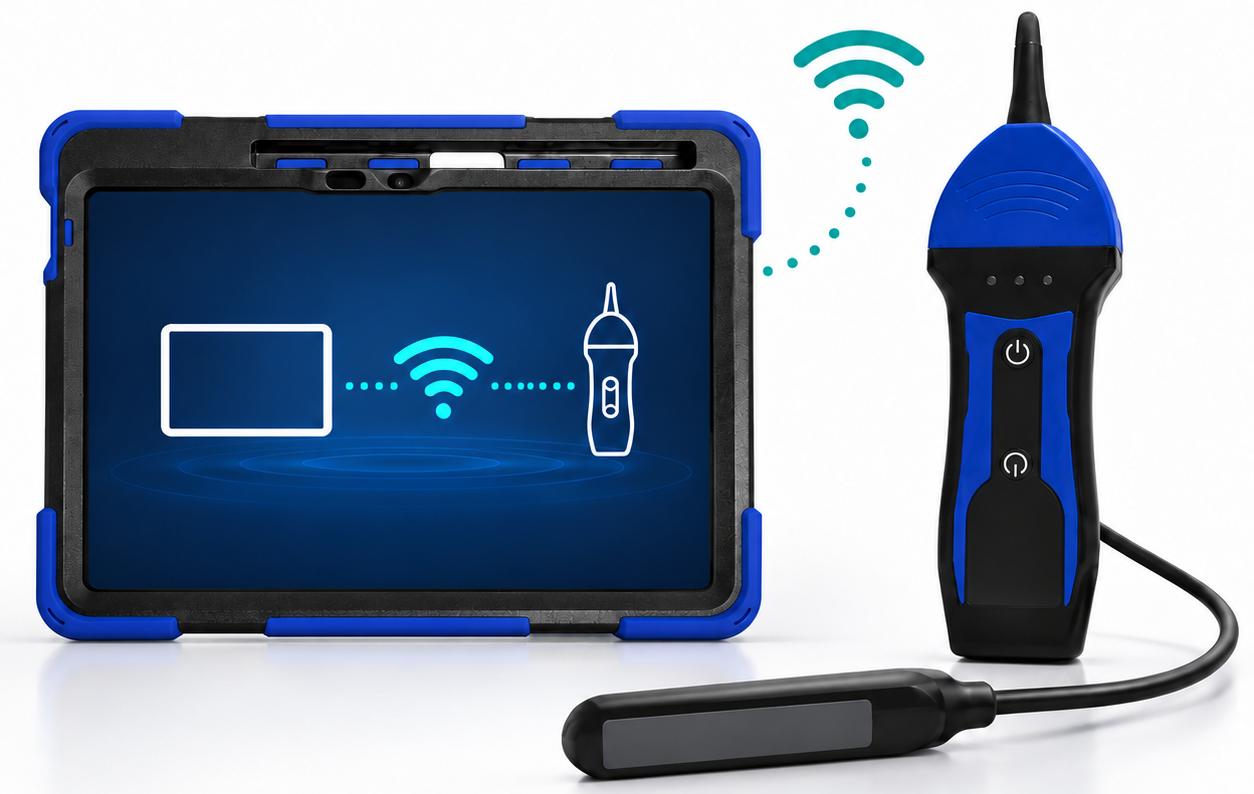

A tablet is part of the kit

The included tablet arrives with the app installed and tested. The scanner sends images directly to the display over Wi-Fi; a farm router, mobile data plan or internet connection is not needed for scanning.

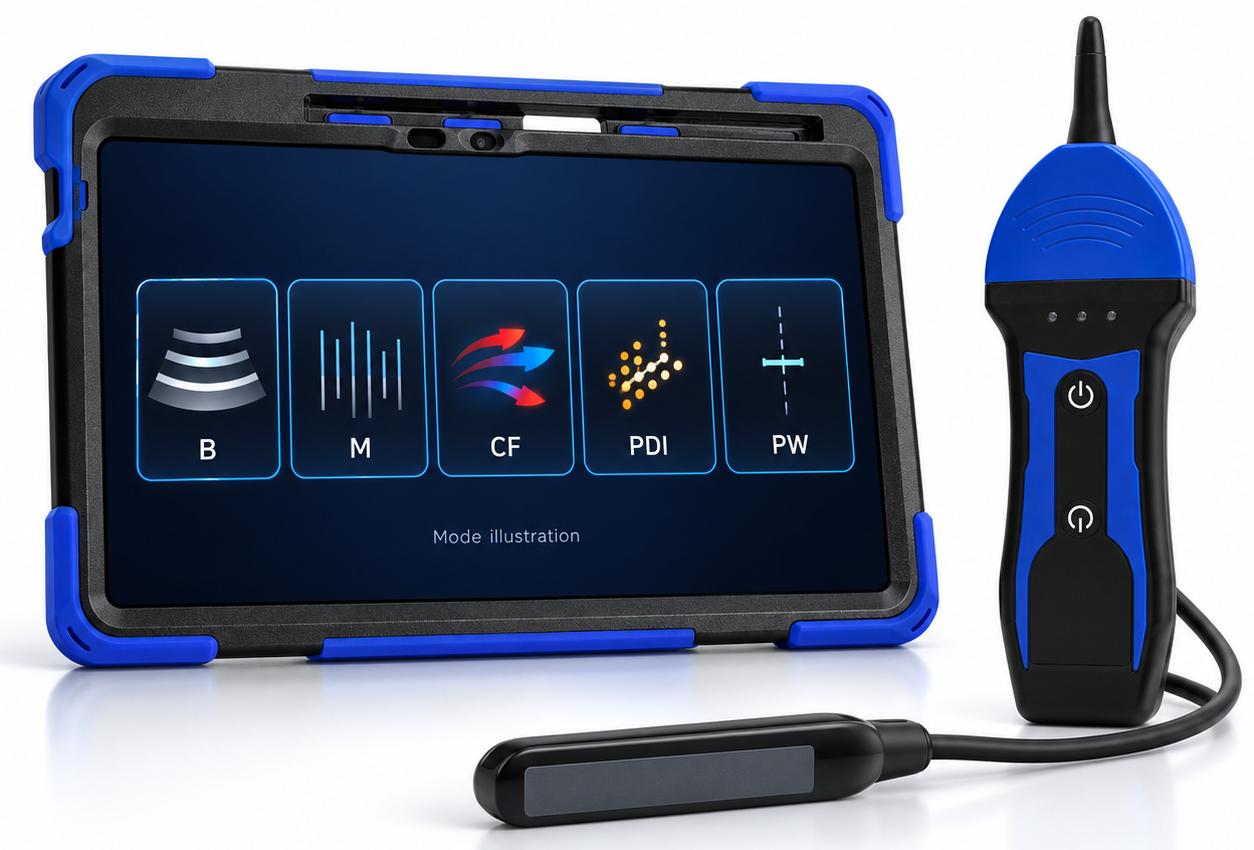

Anatomy, motion and Doppler in one system

Use B mode for grayscale anatomy, M mode for motion over time, and CF, PDI or PW for Doppler assessment. Choose the mode and acquisition settings to suit the examination.

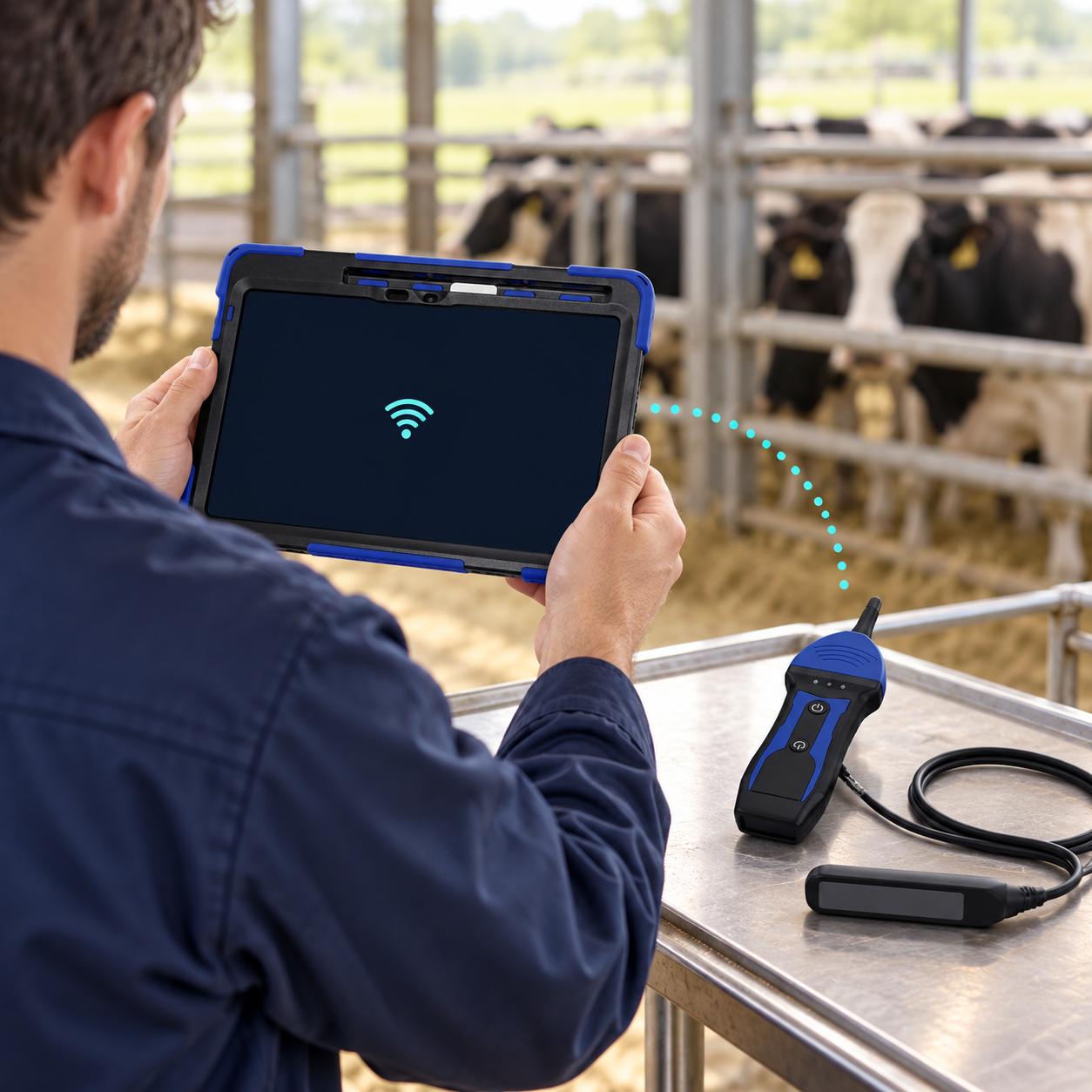

Direct Wi-Fi Connection

The scanner creates its own local Wi-Fi network, allowing the included tablet to receive ultrasound images directly. Position the tablet where it is easy to view—no router, mobile data or internet connection is required.

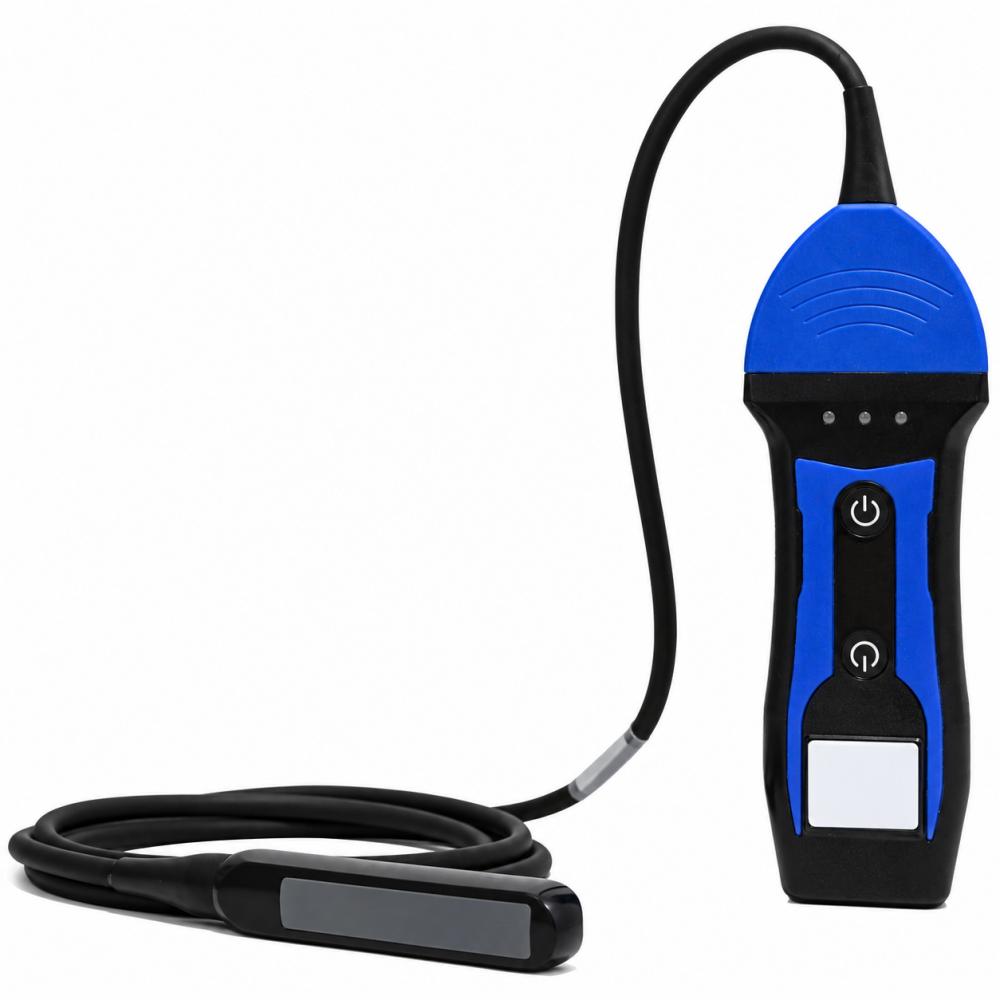

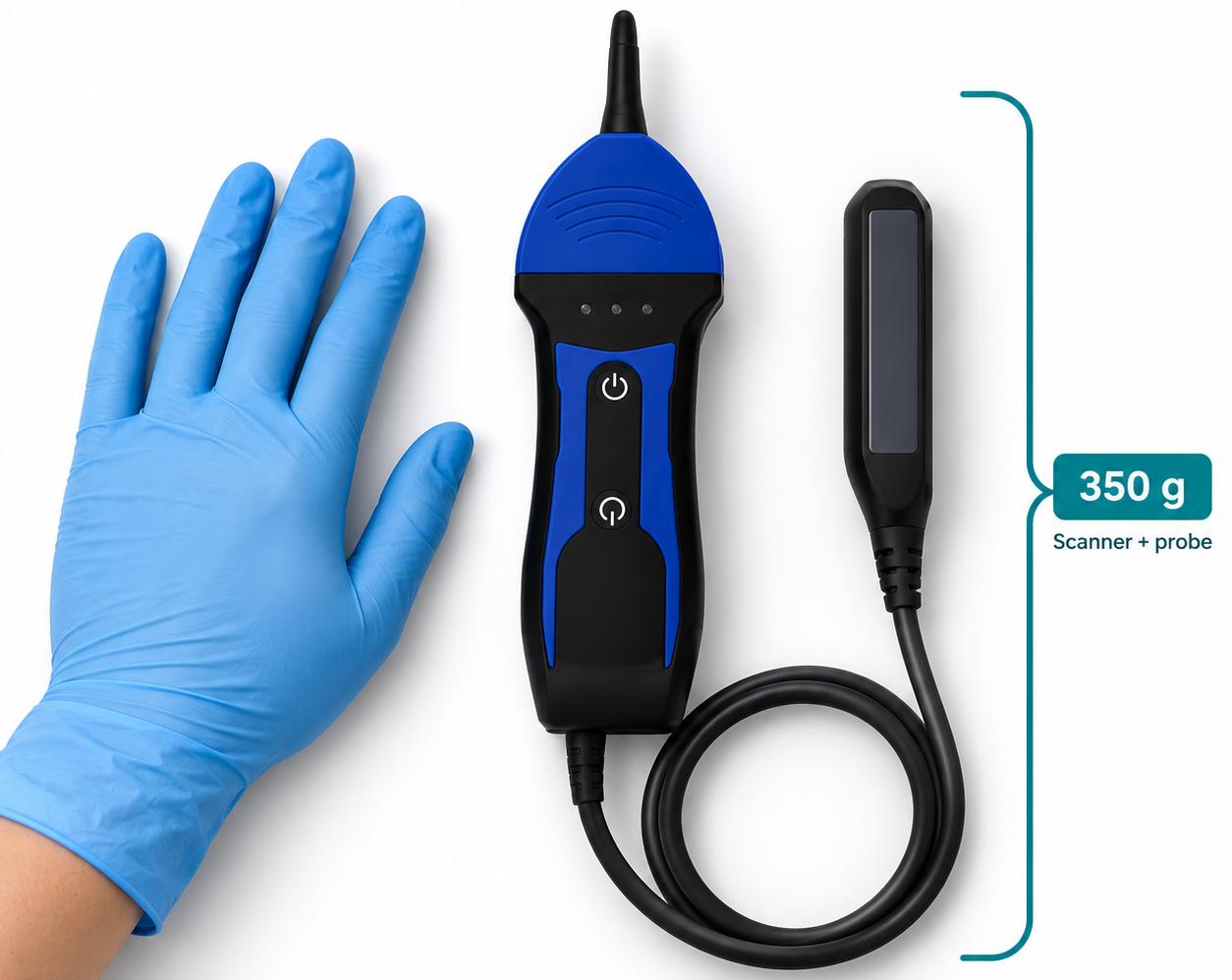

A 350 g scanner and probe

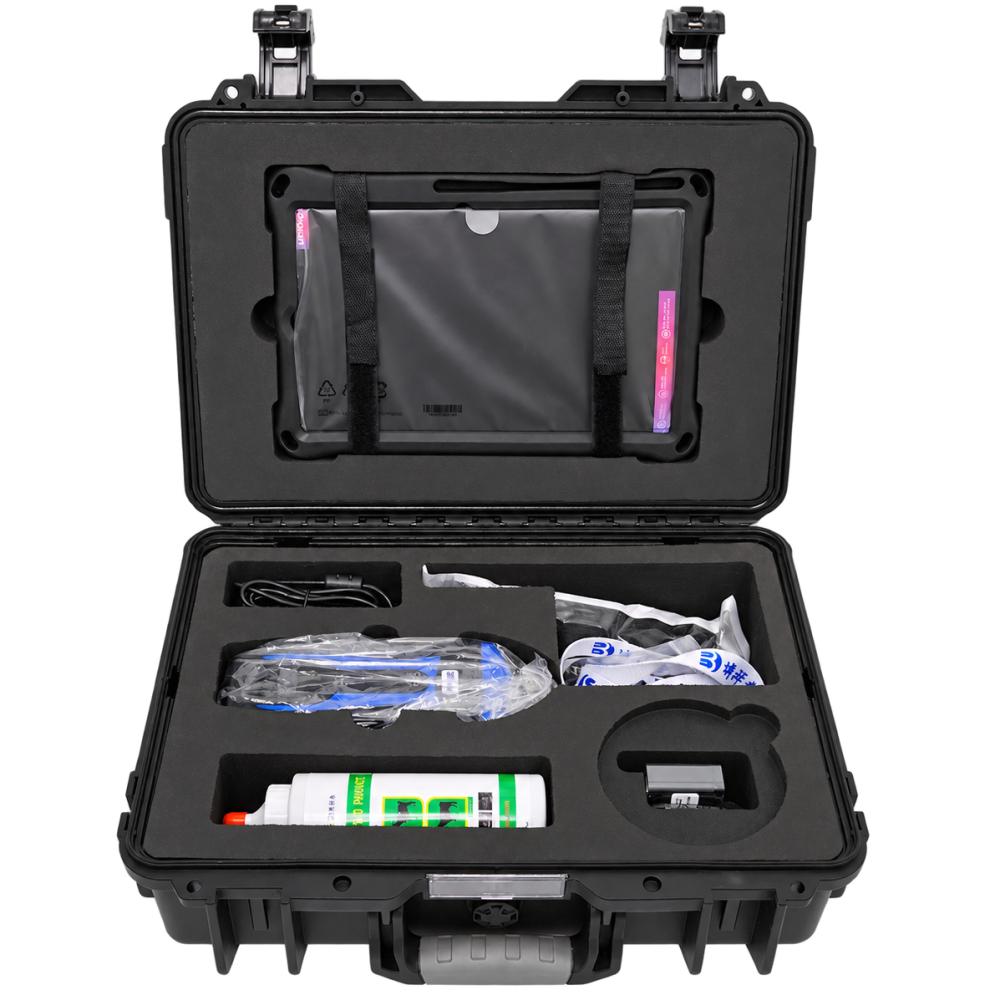

Carry the compact scanner between examination locations with the supplied case. The manufacturer-listed 350 g weight includes the probe and excludes the separate tablet and accessories.

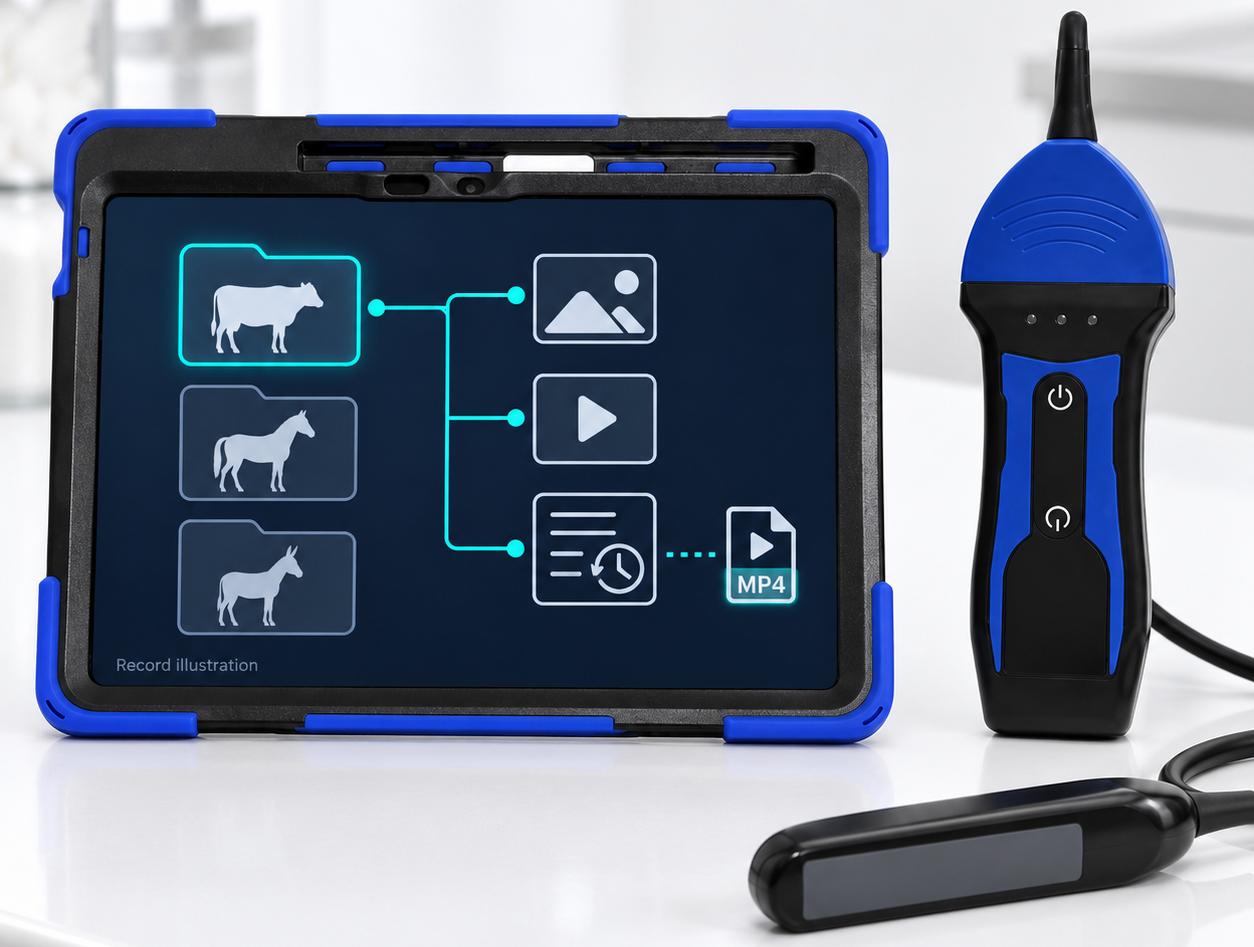

Keep each animal’s scans together

Save images and cached video clips within animal records, then retrieve previous examinations by animal ID. Export saved clips as MP4 files for local review.

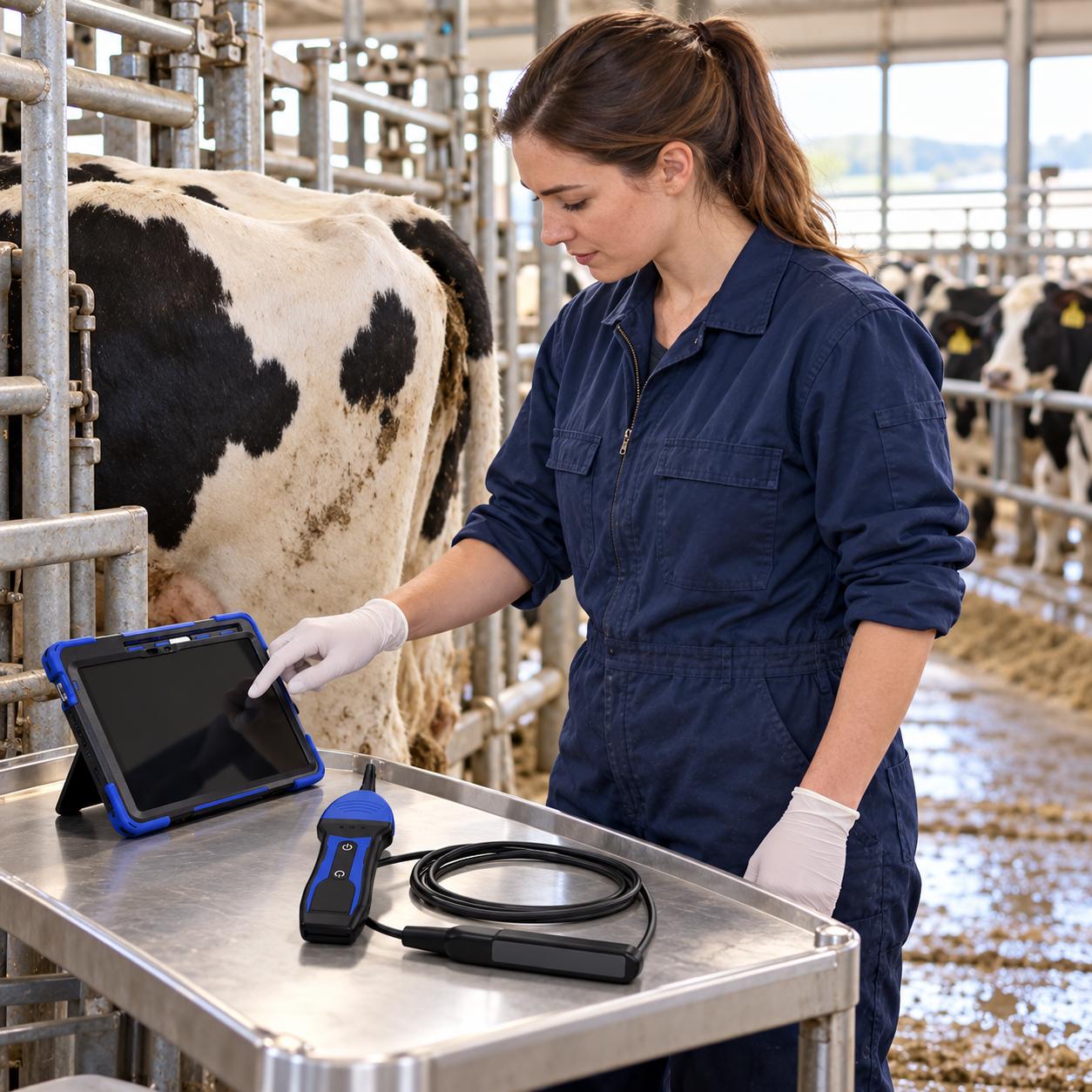

Cattle breeding and herd checks

For trained operators carrying out reproductive examinations on cattle. Link each examination to an animal ID so images can be retrieved during later checks.

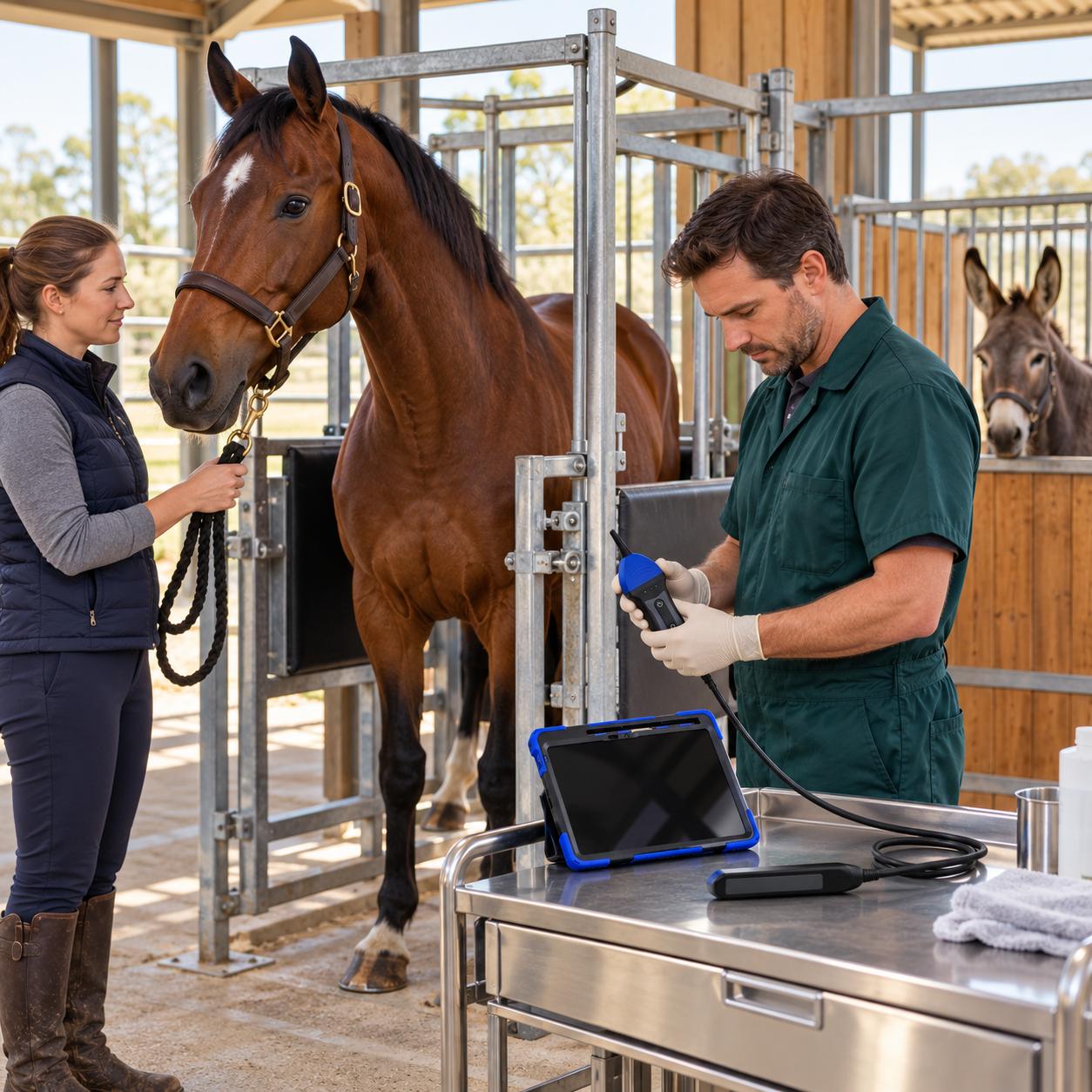

Horse and donkey breeding

For transrectal reproductive imaging with the appropriate operator and handling arrangements. The software manual also documents horse-specific obstetric measurement options.

Mobile and on-farm examinations

For users moving between suitable examination areas who need a separate viewing screen and local records. Direct Wi-Fi supports scanning at locations without internet service.

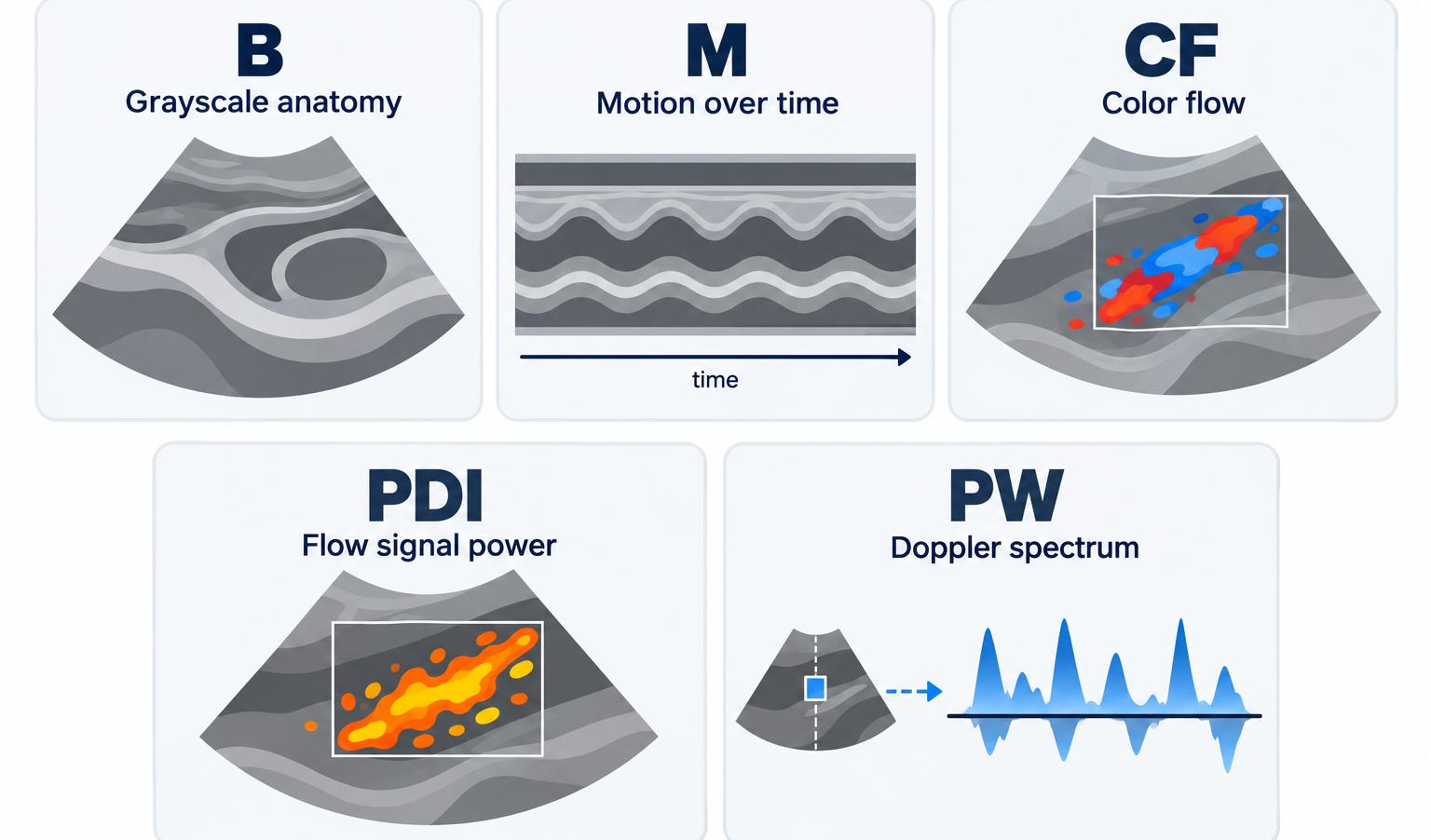

Choose the imaging mode for the information you need: anatomical structure, motion or Doppler signals. All five modes are available in this configuration.

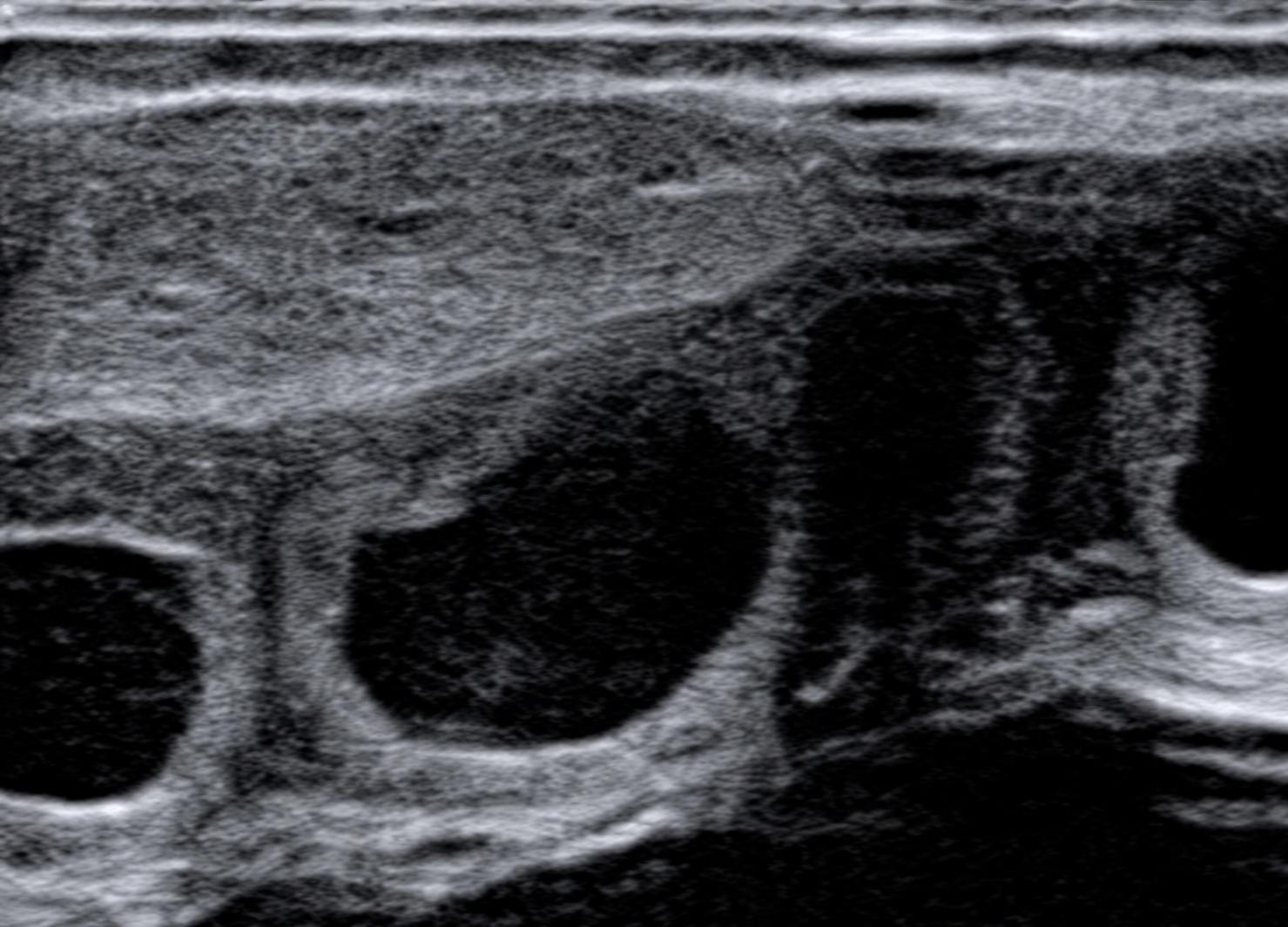

B-Mode Grayscale Imaging

View tissue structures in grayscale to locate the area of interest and guide image-based measurements.

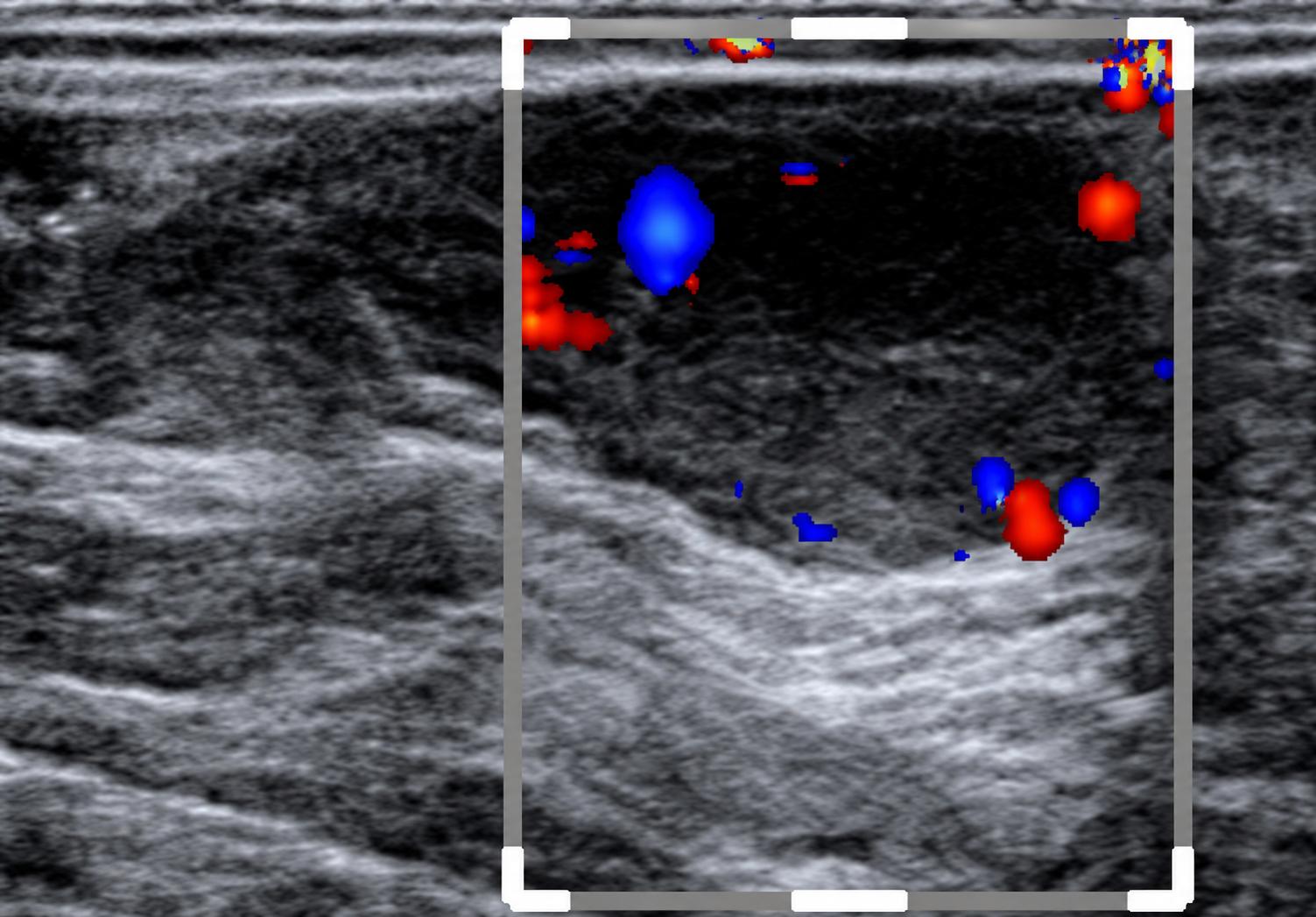

Color Flow Doppler Imaging

View color-coded Doppler signals within a selected area alongside grayscale anatomy to support blood-flow assessment.

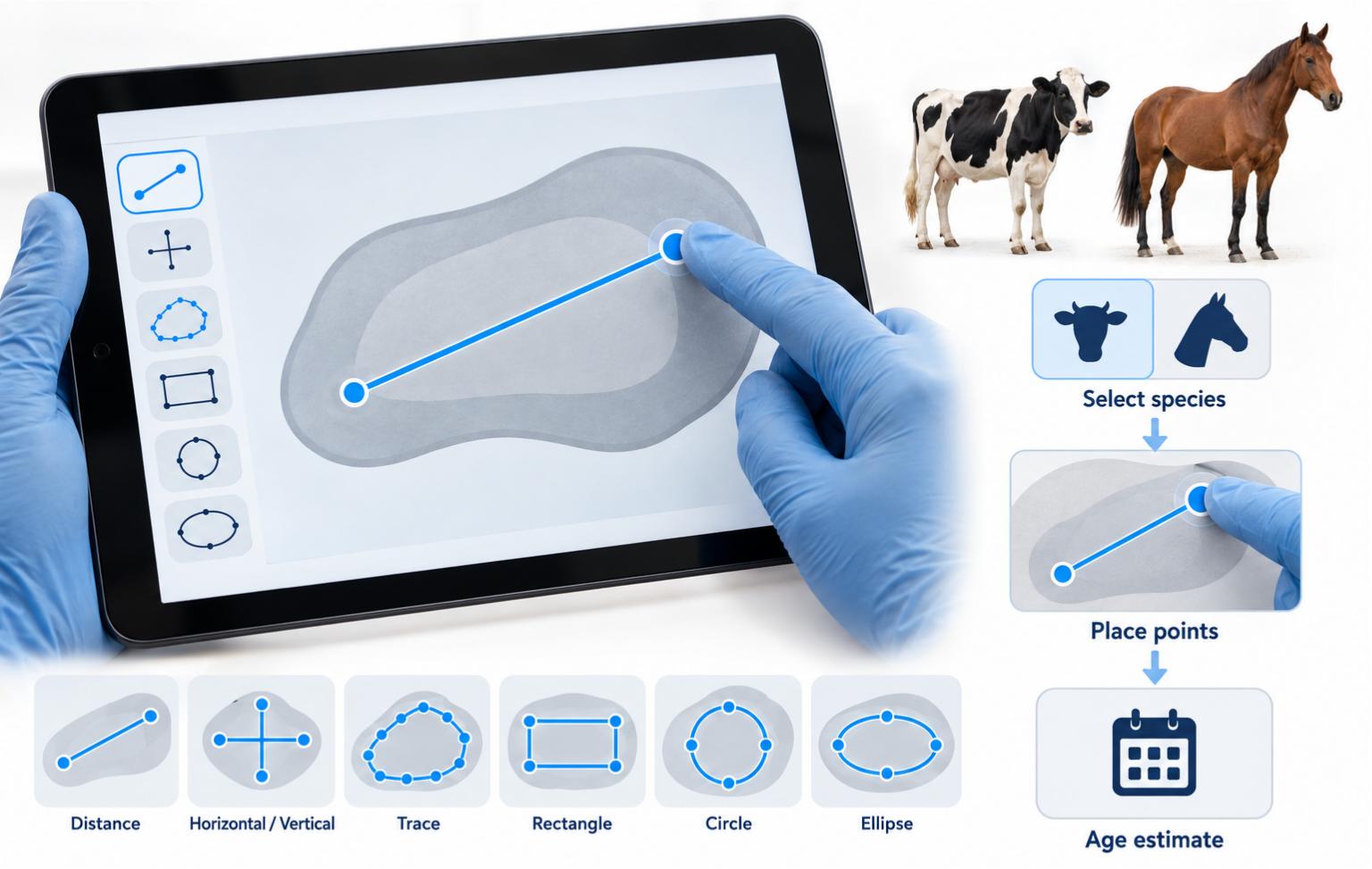

General measurements

Manually measure distances and areas using distance, horizontal or vertical distance, tracing, rectangle, circle and ellipse tools. Choose cm, mm or inches in the app settings.

Gestational age estimates

Select the animal and an appropriate obstetric measurement, place the measurement points manually, and let the software calculate an estimated gestational age from that measurement.

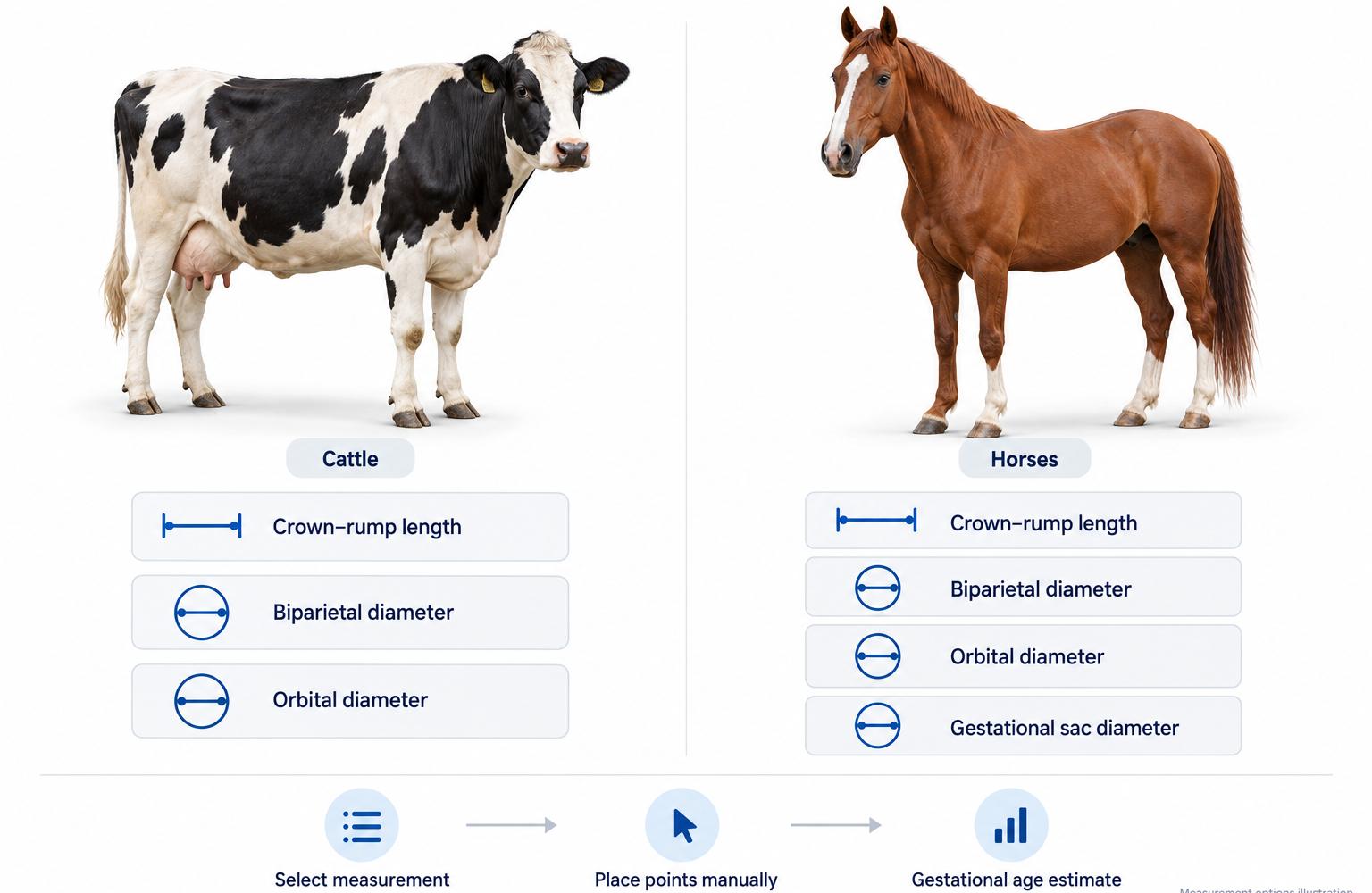

Obstetric Measurement Options

Select species-specific obstetric measurements for cattle and horses, then place the measurement points manually on the ultrasound image. Options include crown–rump length, biparietal diameter and orbital diameter, with gestational sac diameter also available for horses. The software uses the selected measurement to calculate an estimated gestational age.

Choose a measurement appropriate to the species and stage of pregnancy. Gestational age estimates depend on image quality and correct measurement placement; they do not automatically confirm pregnancy.

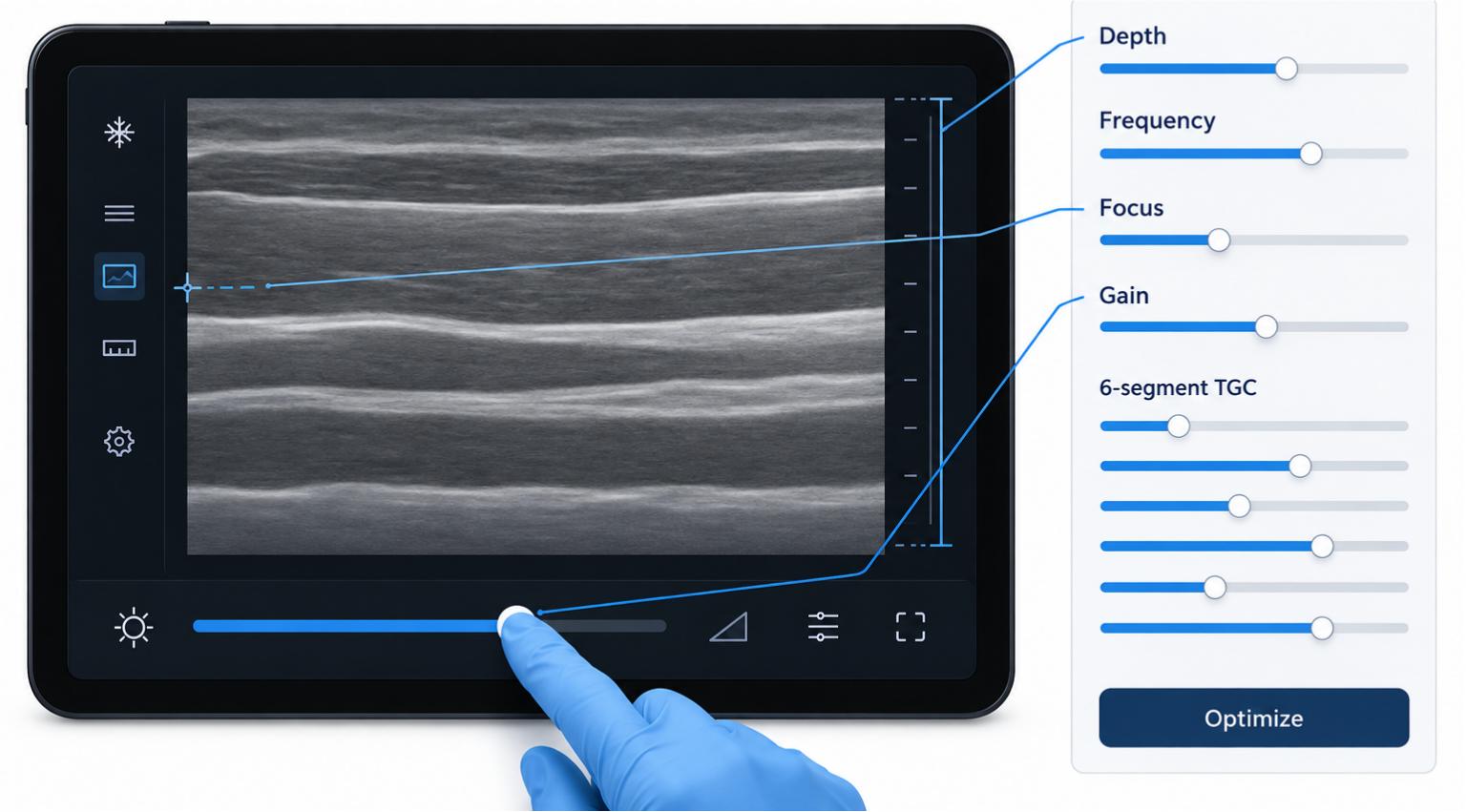

Depth, frequency and focus

Adjust the displayed depth and available frequency settings for the region being examined. Position the focus to suit the target.

One-touch optimization

Apply the image optimization function to reduce speckle and noise, then refine the controls as needed for the examination.

Left- or right-handed layout

Switch the app’s control layout for left- or right-handed use. Freeze, image saving and examination records remain accessible from the interface.

Freeze and playback

Freeze to review the cached sequence, select a frame and make measurements. Still images can be saved during live scanning or while frozen.

Units and interface language

Choose cm, mm or inches. Interface options include English, Chinese, Spanish, French, Russian and Arabic.

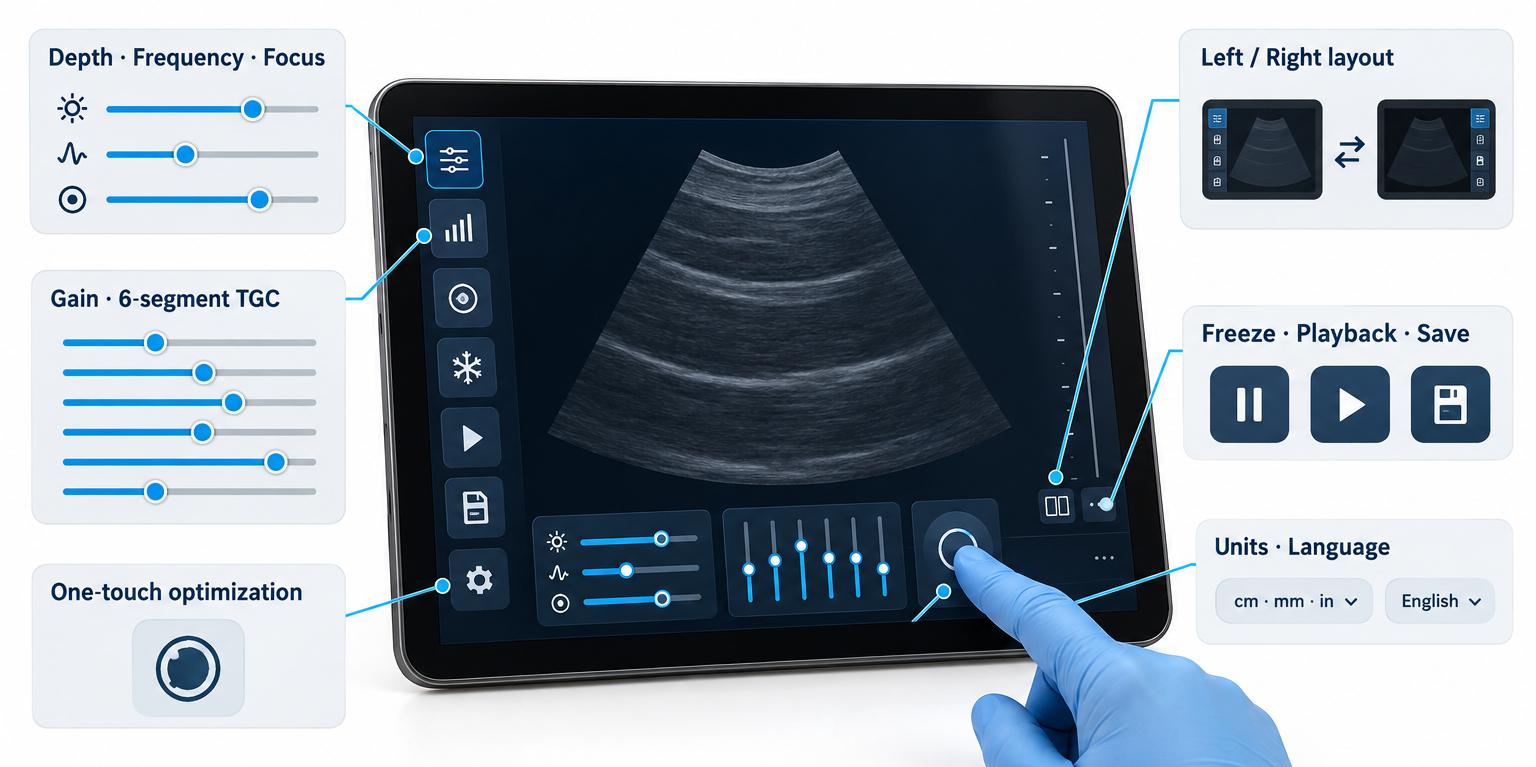

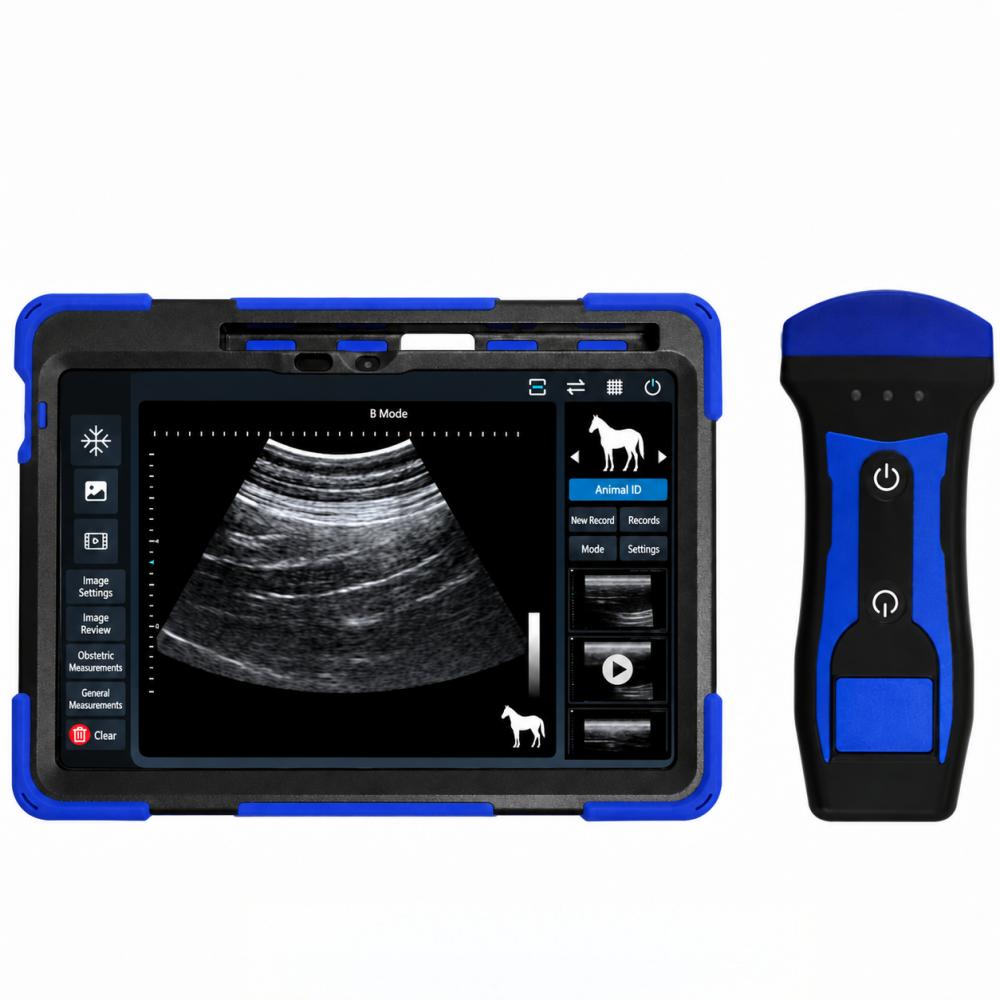

On-Screen Guide

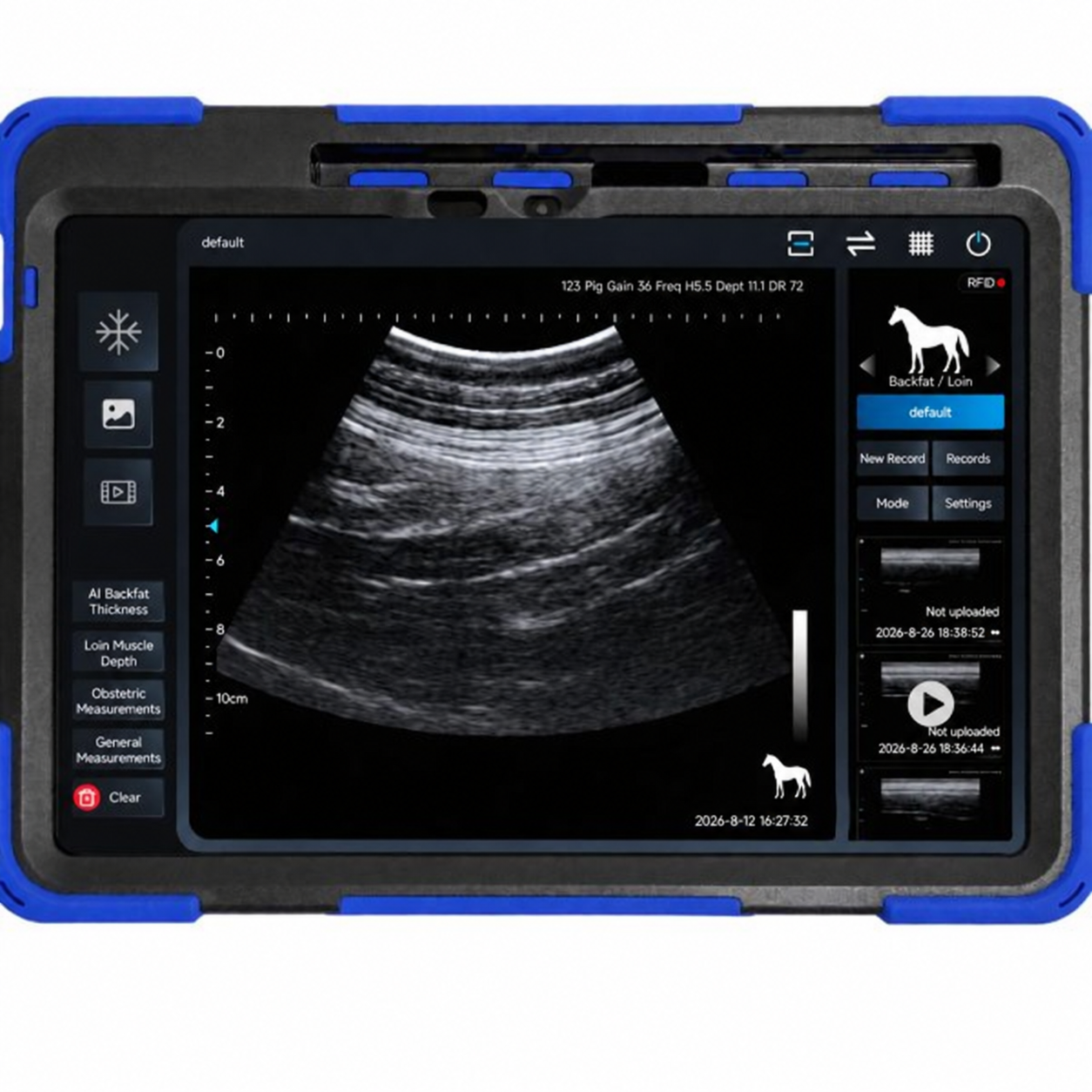

Find the animal ID, imaging parameters and scanner battery level on the main screen. Use the freeze, image-save and record controls to capture and review examination media. Video saving is available after freezing the image.

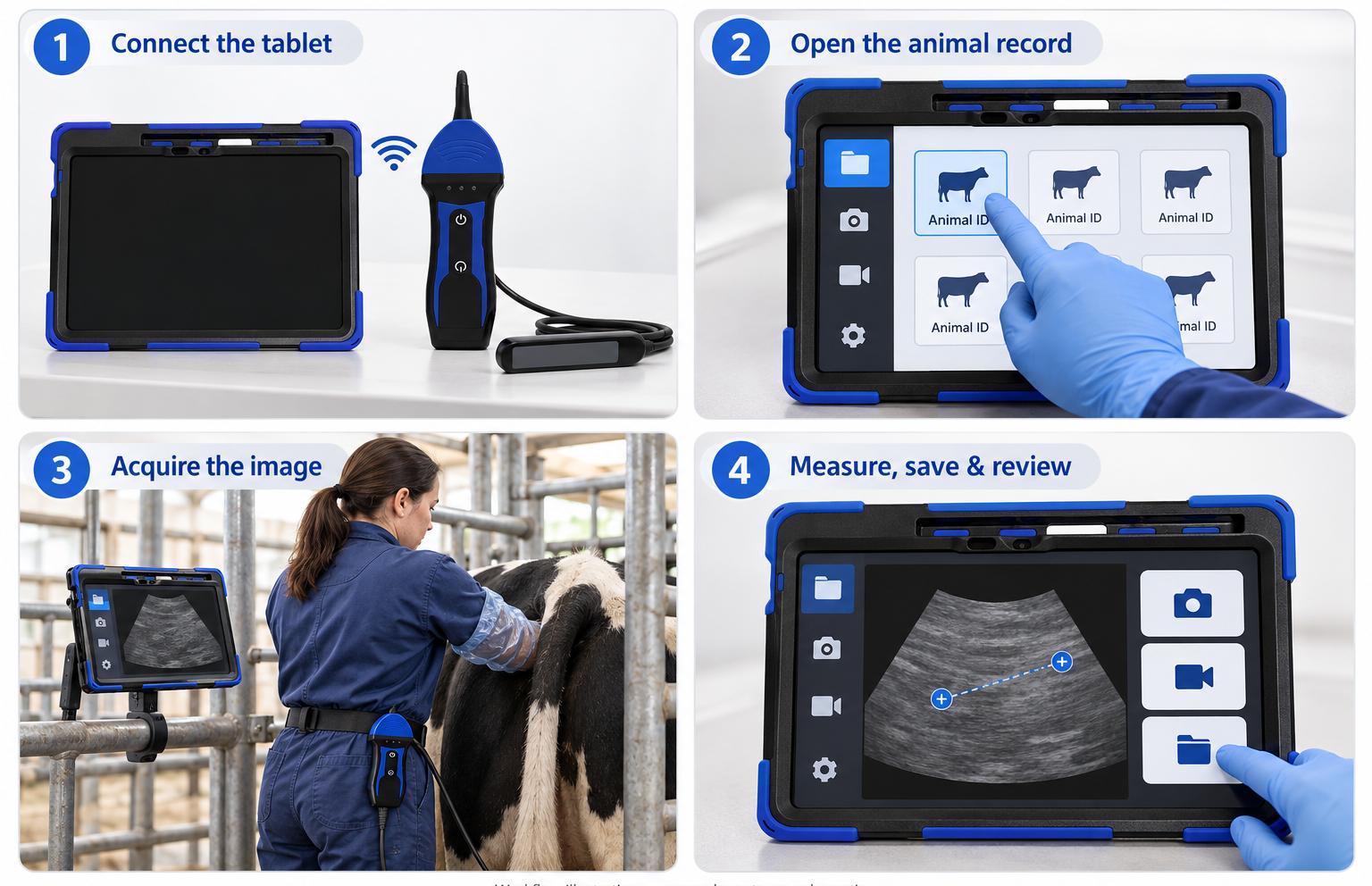

Connect the tablet

Power on the scanner and open the installed app. Follow the connection prompt or select the scanner’s network in the tablet’s Wi-Fi settings.

Open the animal record

Create a record with a unique animal ID, or select an existing record for a follow-up examination. Choose the appropriate animal and examination preset.

Acquire the image

A trained operator performs the examination with suitable animal handling. Select the imaging mode and adjust depth, focus and gain to the region of interest.

Measure, save and review

Freeze for measurement and cached video review. Save the required images or clips, then find them in the animal’s examination record.

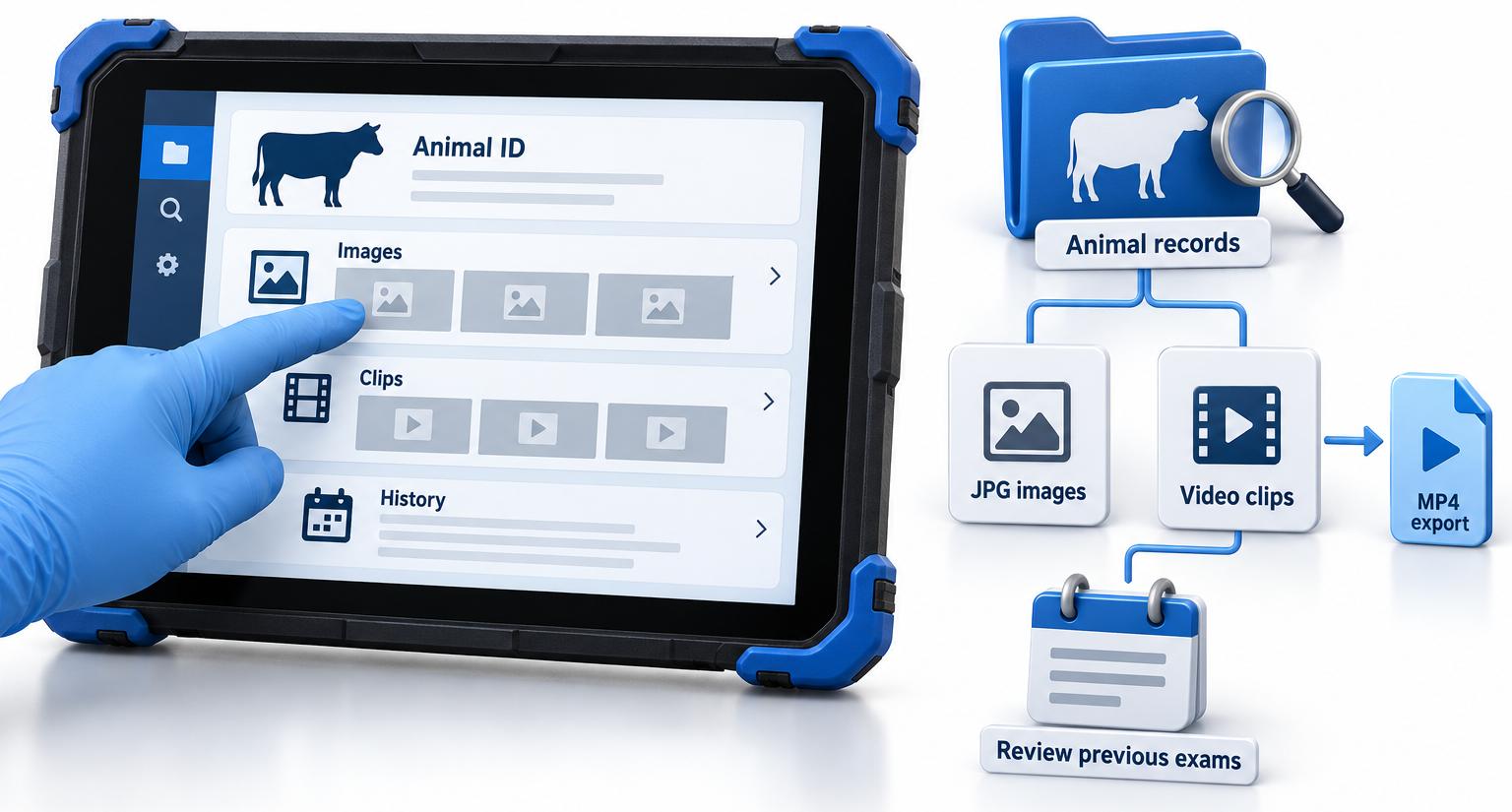

Software & Data Management

Organize ultrasound examinations by animal ID, save images and clips, and return to previous records when an animal needs a follow-up examination. The included tablet comes with the app installed and tested, with no subscription or activation fee.

Individual Animal Records

Create a record with a unique animal ID before scanning, or select an existing record for a repeat examination. Keep related images and clips together so you can find the correct animal’s examination history without searching through unrelated files.

Still Images & Recorded Clips

Save still images in JPG format during live scanning or while the image is frozen. Choose a clip duration of 3, 5, 10, 15 or 20 seconds in the app settings to retain a recorded sequence alongside individual images.

Playback & Follow-Up Review

Freeze the image to review the cached sequence and select a frame for measurement. Reopen saved examinations from the animal’s record to review earlier images and clips during follow-up assessments.

MP4 Video Export

Export recorded clips as MP4 files for playback outside the ultrasound app. This gives you a commonly supported video format for reviewing saved sequences on compatible devices or sharing them for professional review.

Offline Scanning & Local Recording

The scanner connects directly to the tablet through its own local Wi-Fi network. Internet access is not required for scanning or local recording, making the system suitable for use in barns and other locations without an internet connection.

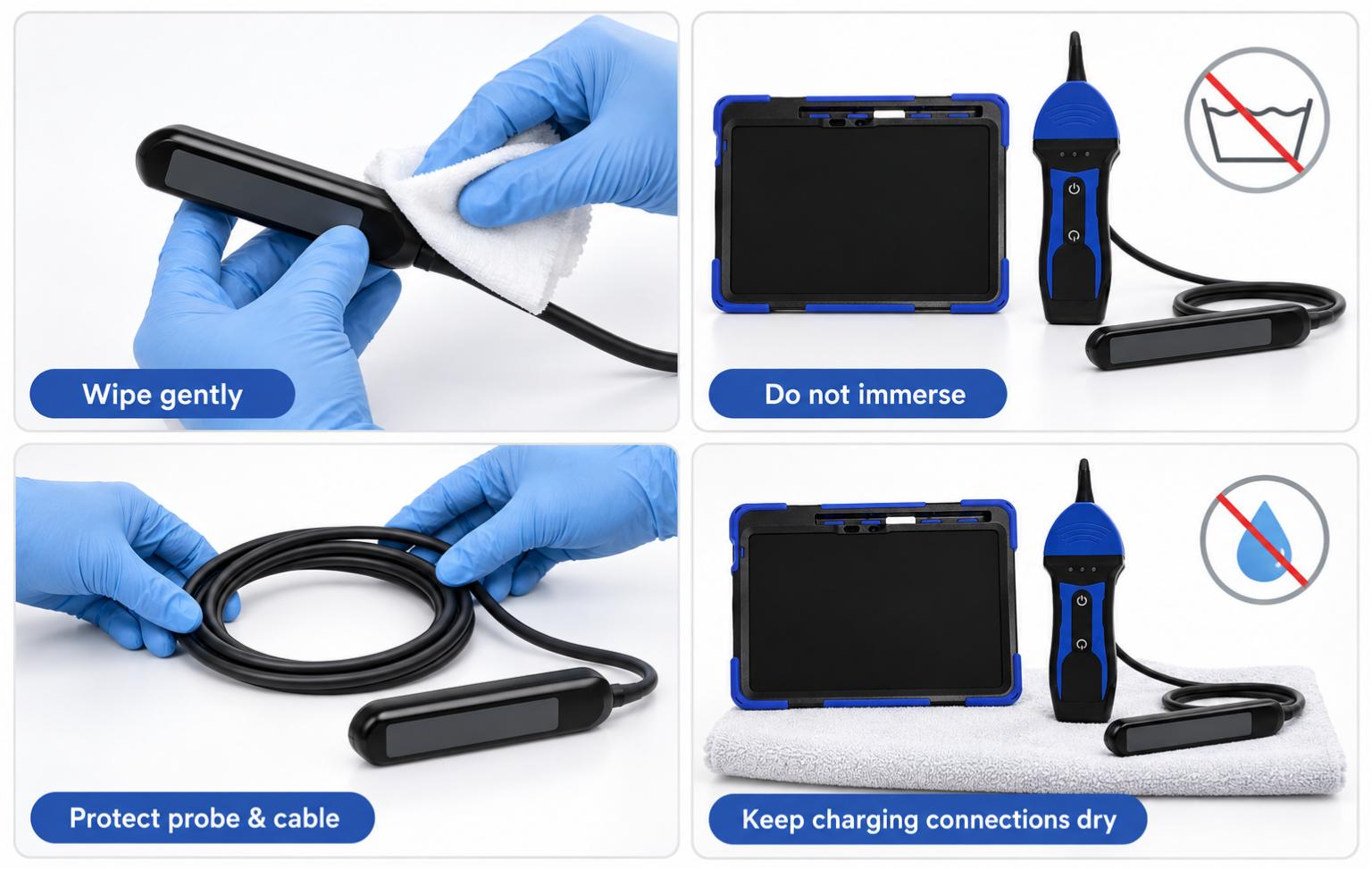

Safe Handling & Routine Care

Use the system with appropriate training in transrectal scanning, ultrasound interpretation and animal handling. After use, clean the probe as directed in the supplied instructions and wipe equipment surfaces with a soft, damp cloth; do not immerse the equipment. Use only cleaning and disinfection methods confirmed as compatible with the probe. Protect the probe and cable from impact, pulling and sharp bends, keep charging connections dry, and use the supplied power equipment.
